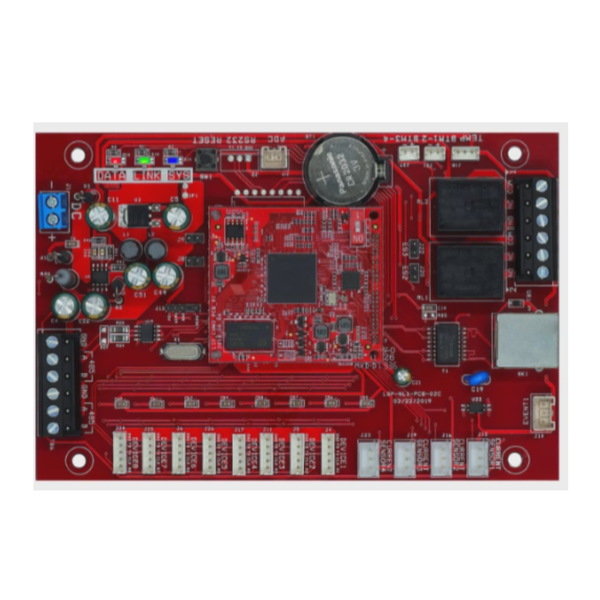

FPAC-BNLX - FERN360 Eight port network monitoring module with RS485 - monitors up to 24 total devices
FPAC-BNLX - FERN360 Eight port network monitoring module with RS485 - monitors up to 24 total devices
FPAC-BNLX - FERN360 Eight port network monitoring module with RS485 - monitors up to 24 total devices

FPAC-BNLX - FERN360 Eight port network monitoring module with RS485 - monitors up to 24 total devices

FERN360 SKU: FPAC-BNLX

Available Now!
Description  Specs

Features



Eight port network monitoring module with RS485 – monitors up to 24 total devices

  • Eight port network monitoring module with RS485
  • Monitors voltage, current, fault status, automated battery testing, sends email reports
  • Compatible with FPAC-BM8
  • Power Input - Easy terminal strip connection for FPAC-BNLX power
  • RS485 Port - Allows remote communication with up to sixteen
  • Power devices for Distributed Power Monitoring SPI Connections to Devices - Local connection for up to eight Power devices
  • Current Sensor Inputs - measures the current draw of a non-managed output, such as from a FPAC-BB100.
  • Event 1 Input - Monitors the enclosure tamper switch or other switched DC sources Network Connection - Communication to and from the local network to the FPAC-BNLX Control Outputs - Dual Form-C relay outputs which can be controlled from the FPAC-BNLX interface. Useful for controlling or power cycling devices
  • External Temperature Sensor - Measures the temperature of the IDF closet - programmable limits.
  • Coin Cell Battery
  • Backs up the real time clock in the event of a complete power failure Voltmeter Input - measures the voltage of a non-managed output, such as from a FPAC-BB100
  • Reset Switch - Manually resets the user name and/or IP address to default
  • Visual Indicators - Display the status of the FPAC-BNLX and the network connection
