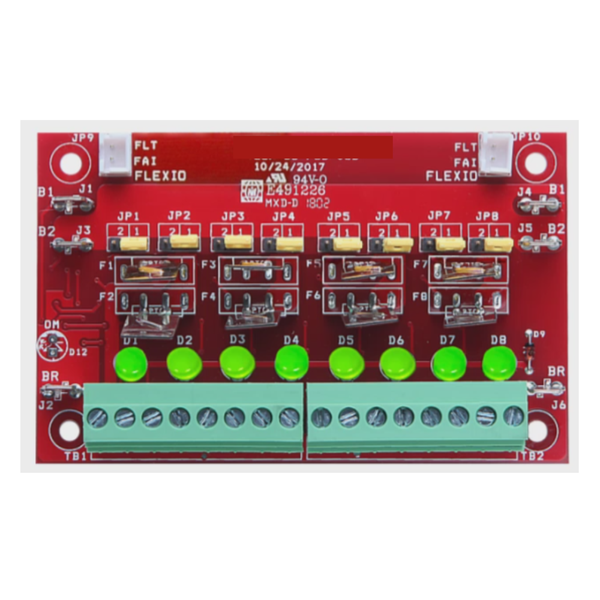

FPAC-BD8P - FERN360 8 Out Auxiliary distribution module, class 2 power limited at 2.5A per Output, each Output selectable for Bus1 or Bus2

FERN360 SKU: FPAC-BD8P

Available Now!



Expand the number of system power outputs. Add lock control, or power limiting with individual output protection

FPAC-BD8 power distribution modules provide 8 protected DC outputs.. When used in a single voltage system, each individual voltage output zone may be programmed for a continuous output or to respond to a fire alarm interface for control of egress locks. When used in a dual voltage system, each individual voltage output zone may be programmed for a continuous voltage of either voltage or, to respond to a fire alarm interface for control of egress locks at one of the two system voltages.

FPAC-BF8 power distribution modules expand on the FPAC-BD8 capability by adding failsafe, failsecure, and FAI programming to each of the 8 voltage outputs as well as selection of either voltage in a dual voltage system, providing six programming choices per zone.

Both the FPAC-BD8 and FPAC-BF8 modules may be used for lock control or power distribution in an access control system and for door holder power in a fire system.

Product highlights

  • Listed for Intrusion and Access Control
  • Each zone is fused at 3A or 2.5A for PTC circuit breakers
  • PTC versions are low voltage, Class 2 power limited
  • Allow selection by zone from two voltage sources
  • Accessory board types include:
    • FPAC-BD8 Simple distribution
    • FPAC-BF8 FAI controlled distribution

Overview - 8 Zone Modules

  • FPAC-BD8 DC Auxilliary Power Distribution
  • FPAC-BF8 FAI Power Distribution

Features

  • Fused or power limited versions
  • Per zone voltage selection
  • OutSmart Visual Voltage Verification
  • FPAC-BF8 also allows selection of constant, enable on FAI, or disable on FAI

Flexibility

  • Simple field selectable switch sets output voltage.
  • FlexConnect system minimizes installation labor by using board buss structure to eliminate accessory board interwiring

Expandability

  • Expand number of voltage outputs in increments of eight
  • Add FAI functionality on a per zone basis
  • Add simultaneous failsafe/failsecure voltage outputs

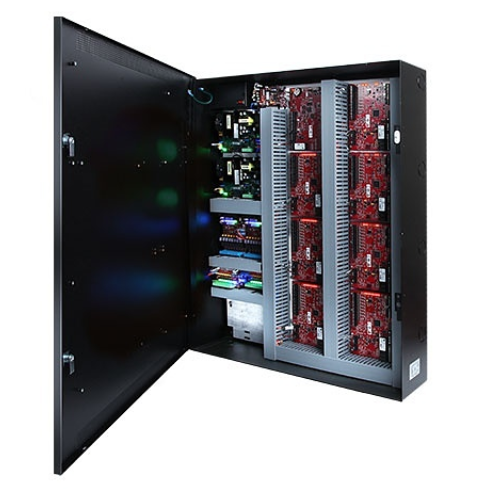

  • Pre-punched cabinet layout allows expansion board additions with minimal labour
