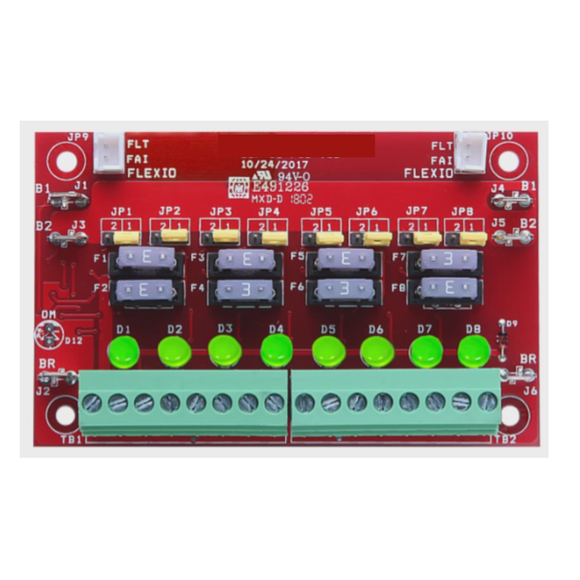

FPAC-BD8 - FERN360 8 Out Auxiliary distribution module, fused at 3A per Output, each Output selectable for Bus1 or Bus2

Expand the number of system power outputs. Add lock control, or power limiting with individual output protection

FPAC-BD8 power distribution modules provide 8 protected DC outputs.. When used in a single voltage system, each individual voltage output zone may be programmed for a continuous output or to respond to a fire alarm interface for control of egress locks. When used in a dual voltage system, each individual voltage output zone may be programmed for a continuous voltage of either voltage or, to respond to a fire alarm interface for control of egress locks at one of the two system voltages.

FPAC-BF8 power distribution modules expand on the FPAC-BD8 capability by adding failsafe, failsecure, and FAI programming to each of the 8 voltage outputs as well as selection of either voltage in a dual voltage system, providing six programming choices per zone.

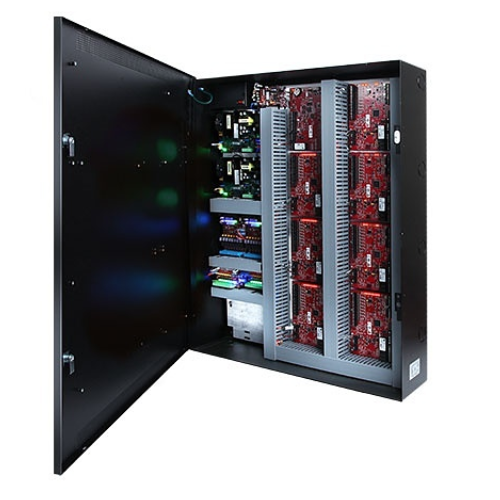

Both the FPAC-BD8 and FPAC-BF8 modules may be used for lock control or power distribution in an access control system and for door holder power in a fire system.

Product highlights

• Listed for Intrusion and Access Control
• Each zone is fused at 3A or 2.5A for PTC circuit breakers
• PTC versions are low voltage, Class 2 power limited
• Allow selection by zone from two voltage sources
• Accessory board types include:
  • FPAC-BD8 Simple distribution
  • FPAC-BF8 FAI controlled distribution
