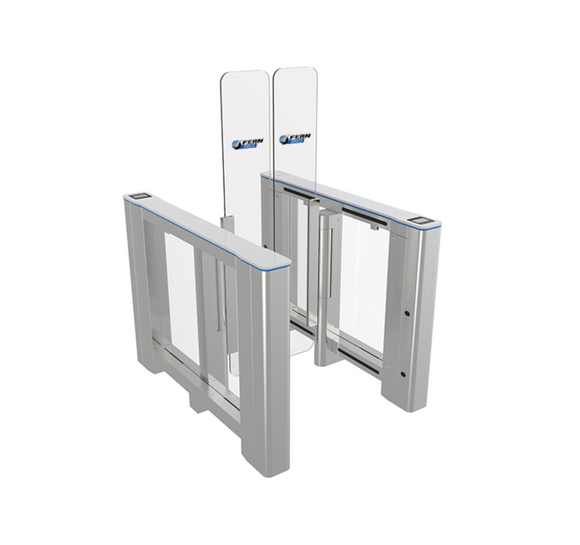

FGES-SGFHSW-600 - FERN360 - Full Height Stainless Steel Swing Speed Gate

FERN360 SKU: FGES-SGFHSW-600

Available Now!

Price On Application

    Features::

      • Dimension: 1400x150x980mm
      • Material: 2.0mm Japanese Imported SUS304
      • Top Cover: 12mm white, man-made marble
      • Arm Material: 10mm Tempered glass
      • Filling Panel: 8mm Tempered glass
      • Pass Width: 600mm
      • Drive Unit: Brushless Servomotor
      • Input: 100-240V; 50/60HZ
      • Working Voltage:24V
      • MCBF: 5,000,000Cycles
      • Communication Interface: RS485, Dry contact
      • Operating Time: 0.2Seconds
      • Pass Rate: 35-40 persons/minute
      • Working temperature:-25?øC~70?øC
      • Max power consumption 35w
      • Photocells: 12 pairs

      PLEASE NOTE: This is a Made to Order Item

      Downloads
